Shaded Pole CL.E Single Phase Ac Series Motor For Cross Flow Fan

Name: Shaded Pole CLE Single Phase Ac Series Motor For Cross Flow Fan
Brand: Zhaoli
Price: 1 USD

Buy cheap Shaded Pole CL.E Single Phase Ac Series Motor For Cross Flow Fan product

Brand Name : Zhaoli

Model Number : YJ48-12

Certification : UL, CUL, CE, VDE, CCC, ROHS, REACH

Place of Origin : China

MOQ : 1000pcs

Payment Terms : L/C, T/T, Western Union

Supply Ability : 300,000pcs per day

Delivery Time : 20-40 days

Packaging Details : cartons + wooden pallet

Name : shaded pole motor

Rated voltage : 120V 60HZ

Stack size : 48x50mm

Lamination : 12mm

Insulation class : CL.E

Bearing : sleeve bearing ball bearing optional

Shaft : customized

Load : fan blade

Printing : Customized printing

Packing : Customized packing

Motor Type : Asynchronous motor

Phase : Single phase

Protection feature : Thermal protection

Application : tangential fan

Contact Now

Shaded Pole CL.E Single Phase Ac Series Motor For Cross Flow Fan

Shaded Pole Motor For Cross Flow Fan Heater Fan Zhaoli Motor YJ48-12 CL.E

Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece.

Specification:

Model

Rated Voltage/ Frequency

V/HZ

On Load (fan blade)

Start-up voltage V

Current

Input power

Speed

RPM

YJ48/200

120

<110

<0.18A

<13W

>2100

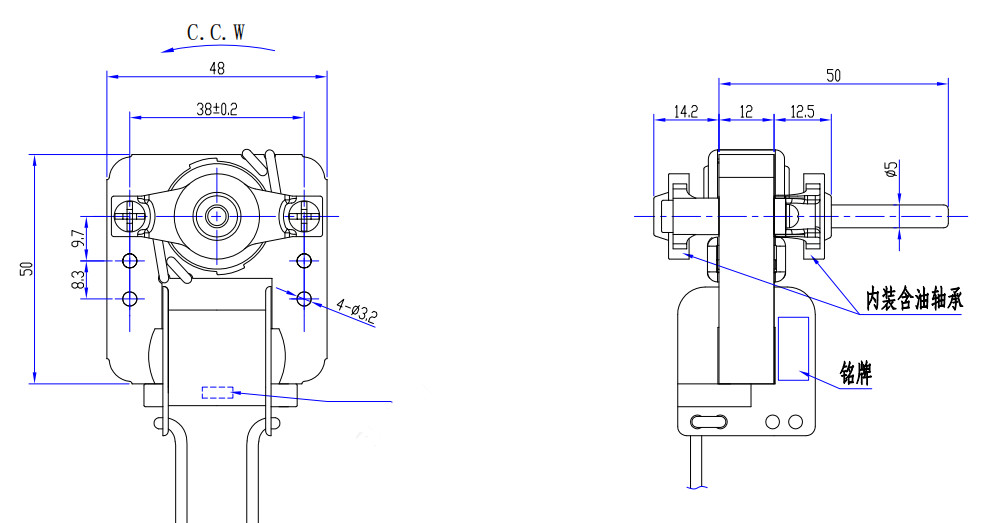

Drawing:

Shaded Pole CL.E Single Phase Ac Series Motor For Cross Flow Fan

Application: Tangential fan, blower fan, heater fan, circulator fan

Shaded Pole CL.E Single Phase Ac Series Motor For Cross Flow Fan
